Black color linear led light 1200mm 50w led pendant light for subway lighting
Product Advantages
1. Seamless connection to connect various linear lights;
2. Direct and easy terminal docking and hasp type installation design;
3. UGR<19
4. Variety of beam angle for option to meet different application places,such as supermarket,shopping mall,labs,precision machinery assembly site,schools and offices;
5. Multi-angle connection,optional accessories to DIY into many desired shapes,to fully meet design requirments;
6. Provide intelligent lighting solutions,dimming emergency etc;
7. No Flickering TUV approved Led Power Supply ,
8. 5 years warranty
Product Parameters
| Item No | Power | Lumen | Length | Beam Anlge | CCT | Control | Voltage |
| LLF-1720-70W | 70W | 8200lm | 1720mm | 25° 60° 90° 20×110° 70×120° 160° | 3000K 4000K 5000K 6500K | 1-10V DALI PWM ON/OFF | AC230V AC120V AC100-277V |
| LLF-1436-60W | 60W | 7200lm | 1436mm |
| LLF-1150-50W | 50W | 6000lm | 1150mm |
| LLF-870-40W | 40W | 4800lm | 870mm |
| LLF-580-25W | 25W | 3000lm | 580mm |
Quickly connection
1. Male and female quick connector;
2. Saving installation times.

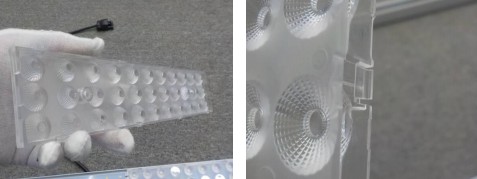

Strong transmittance cover
1. Strong transmittance lens cover,the luminousness more then 90%;
2. Free glare,UGR less 19.
High-duty housing
1. 6063# Aluminum alloy housing;
2. Open-plan design,air flow system keeps the system much cooler than ever.
Easy to connect one by one
1. Male and female quick connector design;
2. Unique innovation in seamless connection,easy installation and maintenance;
3. Max series connection Q'TY:14pcs with 1mm² cable wire.
Application
1. A variety of beam angle for option to meet different application places.
2. Such as supermarket,shopping mall,labs,precision machinery assembly site,schools and offices.
Steps of Installation
1. First open one fixing hole on the ceiling and another hole for passing through the input wire;
2. Fixed the suspended parts by tools to make sure the wire fixing hole is firmed;
3. Fixed the lamp with two screws to the steel rope vertically,and adjust the height of the steel rope.
4. Insert the screw base into the slot on the back of fhe lamp ,Fix light;5. Insert the female and male power plug together,Then connect the Fitting by aluminum Plate and fix it with its locker;
6. Connecting the input wire to 100-240V AC and pay attention to the L N G wire;
7. Turn on switch.
Packing Details
| Model No. | PCS/CTN | Box Size(mm) | Carton Size | N.W(KG) | G.W/CTN(KG) |
| LLF-1150-50W | 4 | 1250×70×55 | 126*16*15CM | 9.8 | 10.9 |
| LLF-1436-60W | 4 | 1555×70×55 | 156*16*15CM | 10.5 | 11.8 |
| LLF-1720-70W | 4 | 1755×70×55 | 176*16*15CM | 12.88 | 14.5 |
